主要用途与详细资料/Purpose and introduction

该生产制造线由理瓶机(上瓶台)、超音波波洗瓶机，包装(旋盖)加塞机，轧盖机，标贴纸机等机组建On the production line by unscramble bottle machine (bottle), ultrasonic bottle washing machine, filling (screw cap) stoppering machine, rolling machine, labeling machine and other equipment

结构特征/characteristic：

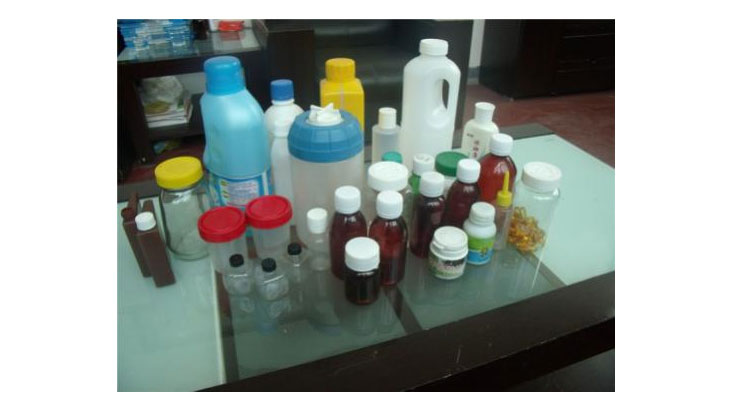

该工作线可以于 30-500ml系列表物料的装灌加塞粘口，变更一定型号模具设备后，既可以于塑胶板材瓶，也可以于破璃瓶。有着不适应范畴密切，优化不便的优势特点。整线工作本事；适小瓶的大小图案，物件粘度指数而定。The product line is suitable for 30-500 ml series products filling barging sealing, change some specifications after the mould, is suitable for plastic bottle, also suitable for glass bottle. Have to adapt to a wide range, convenient adjustment. The whole line production capacity; Optimum size bottle shapes, object on the viscosity.

工艺参数表/technical parameters：

生产能力production capacity(pcs/h)	80-120(8针灌装、6头轧盖    40-60(4针灌装、单头轧盖)
洗瓶洁净车间度Washing bottle cleanliness(%)	> 99
装量测量误差The load error(%)	0-2
上塞达标率Plug on the percent of pass(%)	> 98
轧盖优秀率率Rolling cover percent of pass(%)	> 98
功率power(kw)	11
外形尺寸boundary dimension(LxWxH)   (mm)	9.740 × 1,470 × 1,785
