应用领域与百科/Brief Introduction：

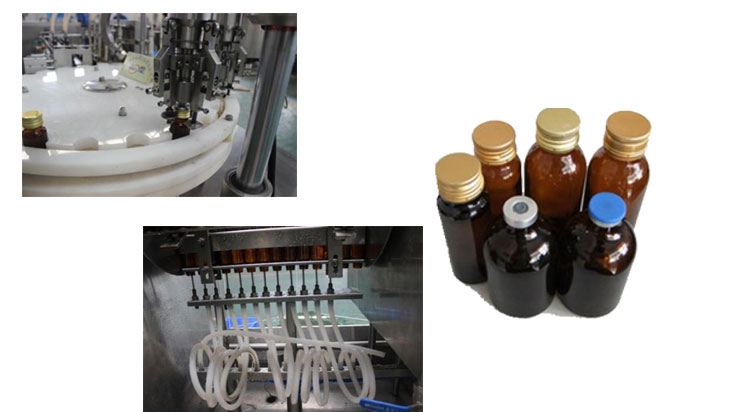

本加工方式线适用30ML及以上口服方式液的装罐线加工方式，由供瓶机、滚轴洗瓶机、双曲线式装罐线轧（旋）盖机、柜式标贴纸机等专用设备组成部分，可全自然达到理瓶、洗瓶、装罐线、上盖、旋（轧）盖、标贴纸等程序。基本用到医药化工品、饮食、化工品的的各项固体货物的装罐线联动性加工方式。本加工方式线压根符合要GMP要。This production line is suitable for more than 30 ml of oral liquid filling production, by for bottle filling machine, roller bottle washing machine, straight-line rolling (spin) cover machine, vertical labeling machine and other equipment, can finish automatically unscramble bottle, bottle washing, filling and cover, cover and label (pad). Mainly used in pharmaceutical, food, chemical industry production of all kinds of liquid filling material of the linkage of. This production line in full compliance with GMP requirements.

结构特征 /Characteristic：

◆外观的材质为304不锈钢装饰管304，装罐部位采316L不锈钢装饰管304，具有GMP规范性。Outer material is 304 stainless steel,and the material of filling part is 316L stainless steel, it complies with GMP regulation ◆可适应性多的规格产生。can be situable for several bottle specs.◆正常运行平衡，空调噪声小，罐装高精度 。Stable running,low noise,precise filling.◆破瓶率低，半成品合格达标率高，万元产值能耗少。low bottle breakage ratio,high qualified product ratio,low energy consumption.◆整件生孩子线可pc单机管控和全国连锁管控。The whole line can single machine control or interlock control.

高技术性能指标/Main Technical Parameters：

适合规格型号Filling Volume	30-150ML
分装头数Productivity	🦩低速度4头              快速8头 4 at lo🌠w speed      &n🧸bsp;      high speed 8
产出力量	低转速30-50瓶/分     迅速70-100瓶/分 30-50bottles/min  70-100bottles/min
灌装设备精确度Filling Precision	≤±1%
旋盖率Capping Rate	≥99%
电源线Power Supply	220V/50Hz
功效Power Supply	2.5kw
生产的线总长Dimension	7500*1000*1700MM
