作用与简洁/ Brief Introduction：

本生孩子加工线由全智能理瓶机、滚筒机式洗瓶机、过滤除菌干燥的机、眼灵药灌装线线旋盖机、卧式标贴纸签空气能热泵机组成，可完工理瓶、水、气的洗涤、烘干阶段及三氧紫外线灯消毒、灌装线线、加塞、旋盖、标贴纸签等加工过程，注意用来眼灵药还有其他小含水量氢氧化钠溶液的联线生孩子加工，也可单人孤立安全使用。非常具备GMP规定要求。This production line consist of  Automatic Bottle Unscrambler,  Bottle Washing Machine, Tunnel Type Sterilization Drier, eyedrop filling machine, Vertical Labeling machine, can complete bottle sorting, water,and gas cleaning, drying and ozone disinfection, filling, plugging, capping, labeling, mainly used in eyedrops and other small doses of solution, also can be used single independently.　 Meet the GMP requirement.

特别/Characteristic：

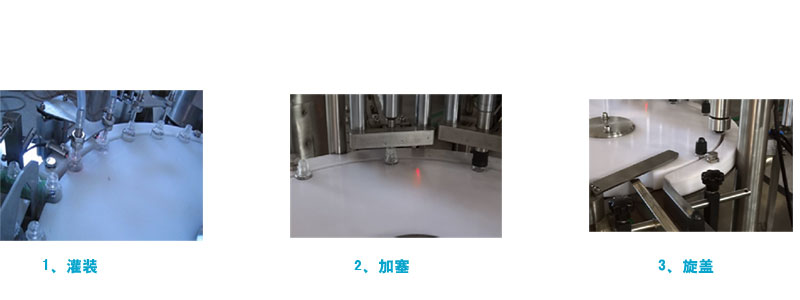

超声波焊接机组设定构造有效率，操作比较稳定、灌装生产线精准度大，具在中国本这个行业现代化质量。是完全复合GMP标淮。     眼灵药罐装旋盖机已近我公司的三、代类产品，组队网页操控，扭动泵罐装，由真空箱吸物理手换用气阀更多的打塞，保证质量了不稳相关性性和合格证率。选用恒扭力旋盖，还具有无瓶不罐装、无塞不上盖，无瓶无塞可系统自动关机的实用功能。    It with reasonable structure, higher precision in filling, reaching the advanced level in domestic same business. Meet with requirement of GMP standard completely.eyedrop filling capping machine is a third generation product, human-machine interface operation, filling by peristaltic pump, replace air cylinder with vacuum drived manipulator for plugging, aquire higherstability and percent of pass. Constant torquecap screwing. No bottle no filling, no plug no capping and automatically stop if cap and plug is under-supply.

枝术基本参数/technical parameters：

适于型号/Bottle size	10-20ml
生孩子实力/Capacity	40-60瓶/分  70-120瓶/分 40-60/  70-120 bottles/min
水阻力/ Hydraulic Pressure Mpa	0.3Mpa
清需水量 /water consumption	0.5 m3/h
整洁挤压气体的压力 /Clean compressed air pressure	0.6-0.8Mpa
是否干净压缩成空气质量使用/Clean compressed air consumption	300 L/min
电原/Voltage	380V/50Hz
工作电压/Power	5.5 kw
生产的线总长/Dimension	11000*1500*1900mm
