使用与详细资料：/Purpose and introduction

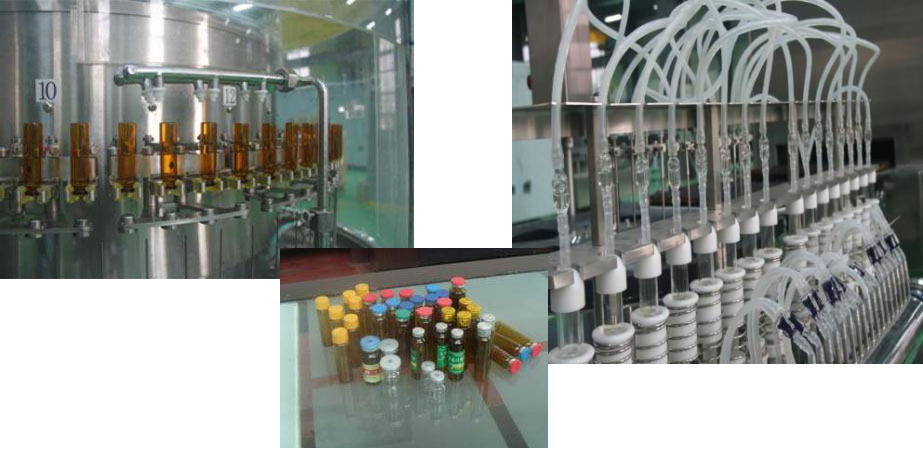

口服方式药药液洗烘灌轧联合线由柜式超声心动图心动图波洗瓶机、随道式制热 配置过滤除菌处理烘干箱箱、口服方式药药液灌装生产线工作线轧盖机等分解成，符合于 5-30ml 等的不同规 格口服方式药药液瓶的工作。可搞定对医疗耗材工作中安瓿瓶淋水、超声心动图心动图波拆洗、冲水、充 气、烘干箱过滤除菌处理、加热、灌装生产线工作线、轧盖等艺步数的联合运作。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

优点和缺点:/characteristic

◆洗瓶机使用机械装备手夹瓶，应用各种要求的瓶里；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶分为水蒸气喷针回转式跟进添加方试，清洁工作效果优好，节俭能源技术。并均有针架防跳动仪器，提升 喷针添加矿泉水瓶的精确度，缩短断针想象出现；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整雾气管道、喷针全自主分不开，避免出现了是交叉废弃物，合适GMP标准规范耍求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺母前还可以加装减慢块，有保护区螺母，减小碎瓶用途Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶按照总布局进口的数据同步带，联接拨块输送机口服方式液，正常运行稳定的安全可靠In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烘烤箱选用红外线受导导热管，不锈钢材料受导导热管两层受热气温透亮性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆灌装生产线轧盖机先选配淘瓷泵、不锈钢材质的泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装线无瓶止灌，无瓶不轧盖的功能。Pieces filling without bottle filling, no bottle no rolling function.◆整线运用PLC总操控、直流软启动器、接触屏操控系统，作业动态取舍可信。接触屏可界面现示各单机游戏的作业壮态，各操控点的进水管、气压表、压力、温度表等界面现示，各启闭壮态和错误码界面现示，错误码自己珍断和错误码浅析及确诊步骤。使一小部分制作销售时实现自动式化操控，联线具备有三机自动化取舍安装，切实保障制作销售匀衡可信。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.按照投资者的需，还可供标配：According to the needs of customers, but also available for selection:◆simens、德力西、三菱数控设备、台达等项目控住设备；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气经济压力、油温及超声心动图波強度、污物塑料颗粒、空气流速免费在线测试、報警、的记录、打印图片模式。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、没有细菌丢开器系统化。Mixer ORABS, CRABS, aseptic isolator system.

水平参数设置：technical parameters

适用于的规格Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
灌装线精确度Filling accuracy(%)	≤ ± 2.5
罐装头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖合格证书率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
